Tsarin Shigar Fitsari na U7002 Mai Haɗakarwa Mai Juyawa 90° | 15/16-16 NPSM
U7002 wani tsari ne na shigar ruwa a fitsari da kuma shigar da bututun ruwa na ciki. An sanya shi ta hanyar buɗewar saman bututun, yana haɗa ruwan waje zuwa gwiwar hannu na ciki 90° wanda ke jagorantar ruwan da ke zuba cikin kwano. Tsarin manne mai zare, gasket ɗin rufewa, gogewar waje mai kama da chrome da ƙananan girma sun sa ya dace da masana'antun kayan tsafta, masu samar da ayyuka, masu rarrabawa da masu siyan gyara - wanda ya dace da tabbatar da haɗin gwiwa.
Abu Na'a :
U7002 ShortGaranti :
1Oda (MOQ) :
100Tashar Jirgin Ruwa :
XiamenSabis na Musamman :
Color, Package, LOGOBAYANIN KAYAYYAKI
Sunan Samfurin:Tsarin Shigar Fitsari na U7002 Mai Haɗakarwa Mai Juyawa 90° | 15/16-16 NPSM

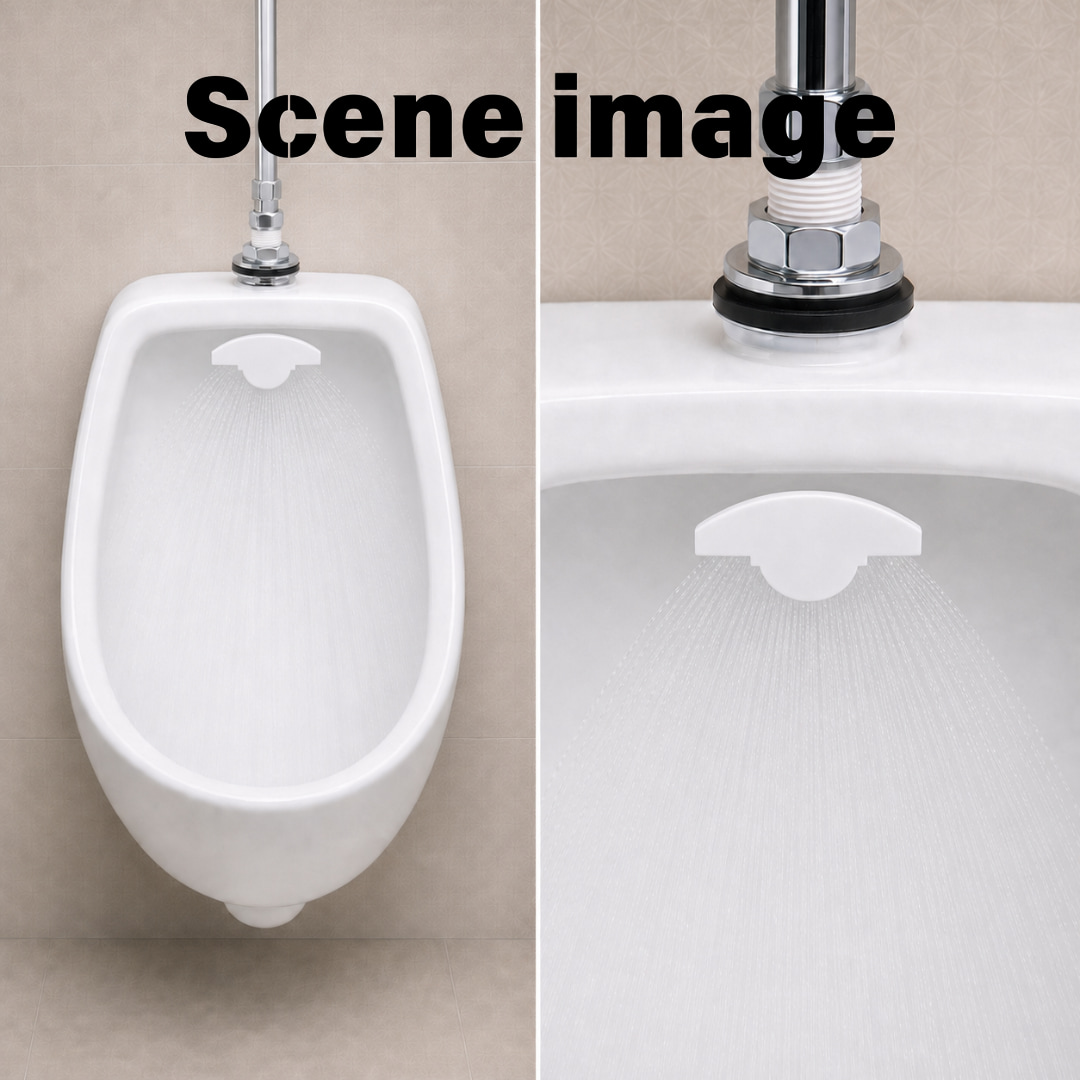

An ƙera shi azaman hanyar shiga fitsari ta bandaki ta kasuwanci, U7002 ya haɗa haɗin ruwa-bututu na waje da kuma hanyar fita ta cikin bandaki a cikin ƙaramin taro ɗaya.

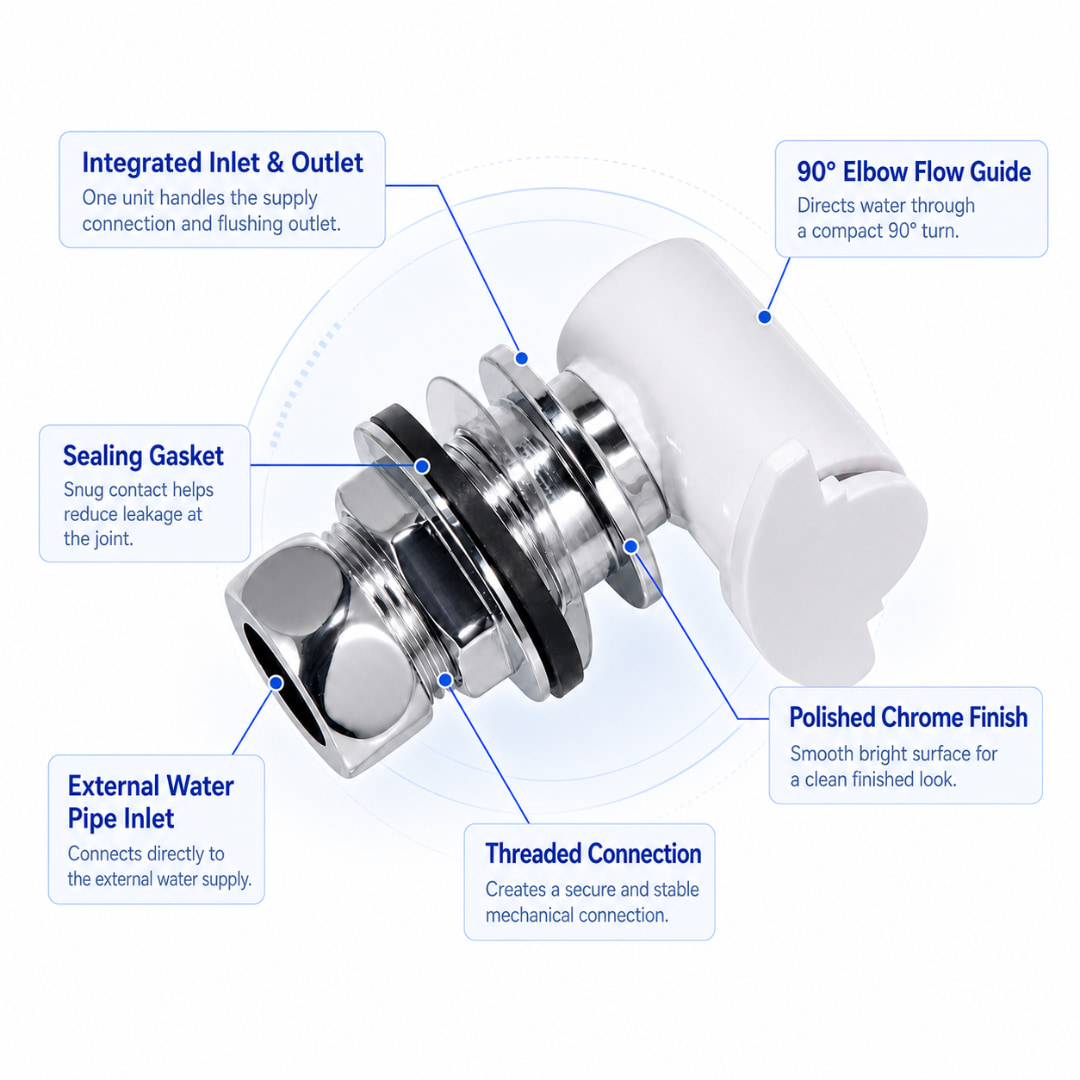

Kayan da aka saka sun ratsa ta cikin babban mashigar fitsari. Abubuwan da ke ɗaure shi da zare da kuma gasket baƙi suna ɗaure haɗin a saman yumbu, yayin da mashigar da aka fallasa mai ƙarshen hex ta haɗu da bututun samar da ruwa na waje. A cikin kwano, gwiwar hannu mai farin 90° tana canza alkiblar kwararar ruwa kuma tana jagorantar ruwan da ke kwarara zuwa ƙasa.
Wannan hanyar aiki kai tsaye ta sanya U7002 ta zama hanyar shigar ruwa ta fitsari mai amfani don shigar da fitsarin yumbu masu dacewa.

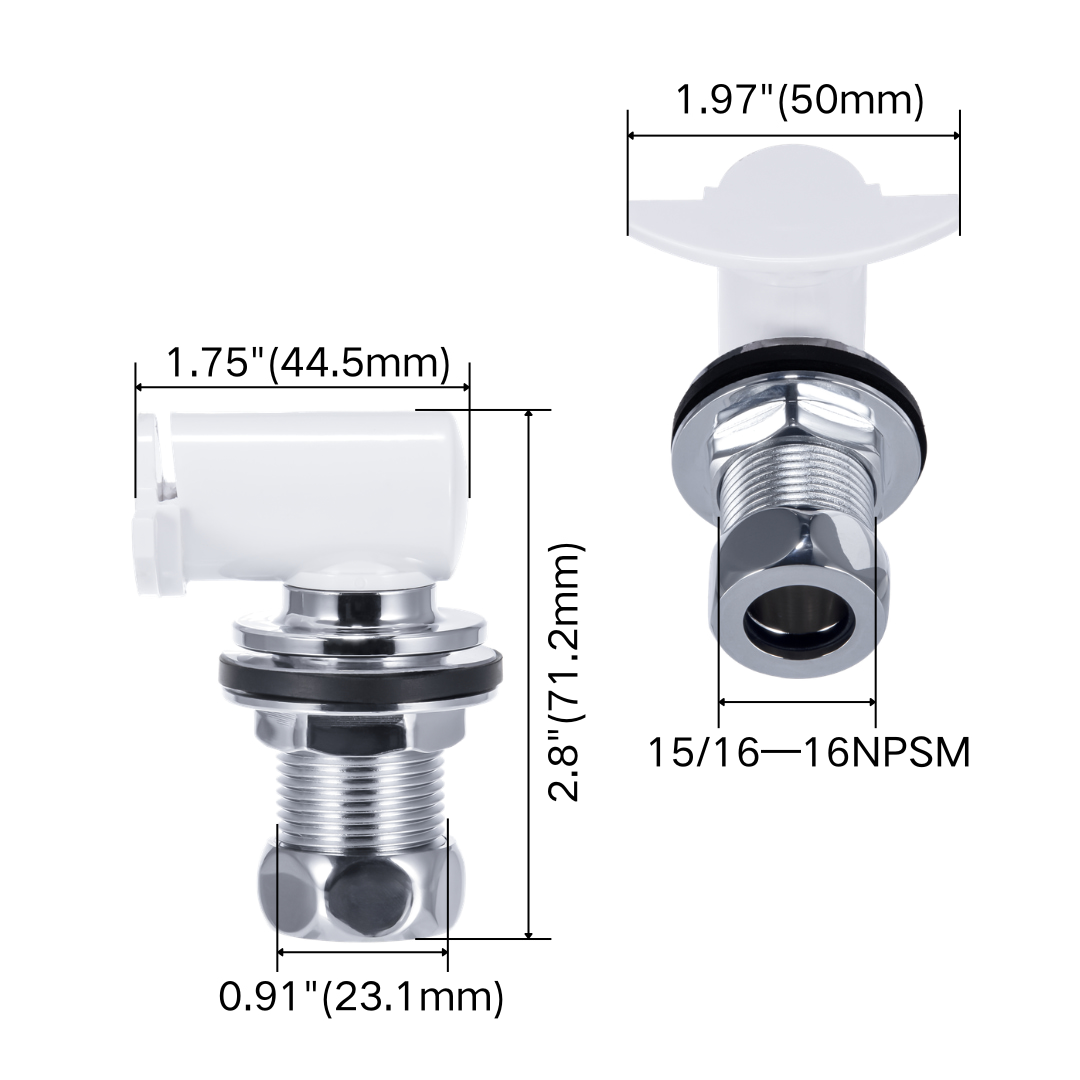

Gajeren sashin gwiwar hannu yana da inci 1.75 (44.5 mm), yayin da cikakken saitin yake da inci 2.8 (71.2 mm) a tsayin gaba ɗaya. Farin jagorar ruwan ciki yana da faɗin inci 1.97 (50 mm), kuma ƙaramin sashin hex yana da faɗin inci 0.91 (23.1 mm).
Waɗannan ma'aunai suna sanya U7002 a matsayin ɗan gajeren maɓuɓɓugar fitsari don ƙananan shigarwa, kodayake dole ne a duba buɗewar yumbu, share kwano na ciki da matsayin bututun samar da kayayyaki kafin a zaɓi.
Haɗin yana amfani da zare na NPSM mai tsawon 15/16-16. Jikin zare yana ba da manne na inji, yayin da gasket ɗin da aka bayar yana kula da kusanci da saman da aka ɗora don taimakawa rage zubewar haɗin.
Waje mai gogewa da aka yi da chrome yana samar da yanayi mai tsabta a saman saman yumbu. Jagorar farin ciki tana samar da mafita da ake iya gani a cikin kwano kuma tana rarraba kwararar da ke shigowa, wanda hakan ke ba da damar a tantance wurin da aka sanya a matsayin wurin watsa fitsari na jama'a a cikin bandaki.
Idan ana la'akari da wannan samfurin a matsayin mahaɗin shiga fitsari don ayyukan gyara, kwatanta duk waɗannan da kayan aikin da ke akwai:
15/16-16 hanyar haɗin zaren NPSM
Girman ramin hawa na sama da saman rufewa
Tsawon jimillar daidaiton 71.2 mm
Tsawon gwiwar hannu mai tsawo 44.5 mm
Faɗin jagorar ruwa na ciki na mm 50
Tsaftacewa da kuma tsari na fitsari a cikin fitsari
Matsayin bututun samar da ruwa na waje
Bai kamata a ɗauki U7002 a matsayin madadin duniya ba kawai saboda wani siffa yana da kama da juna.
Ga masu siye waɗanda ke neman kayan shigar fitsari don siyan aikin da yawa, bayanan da aka bayar sun lissafa:

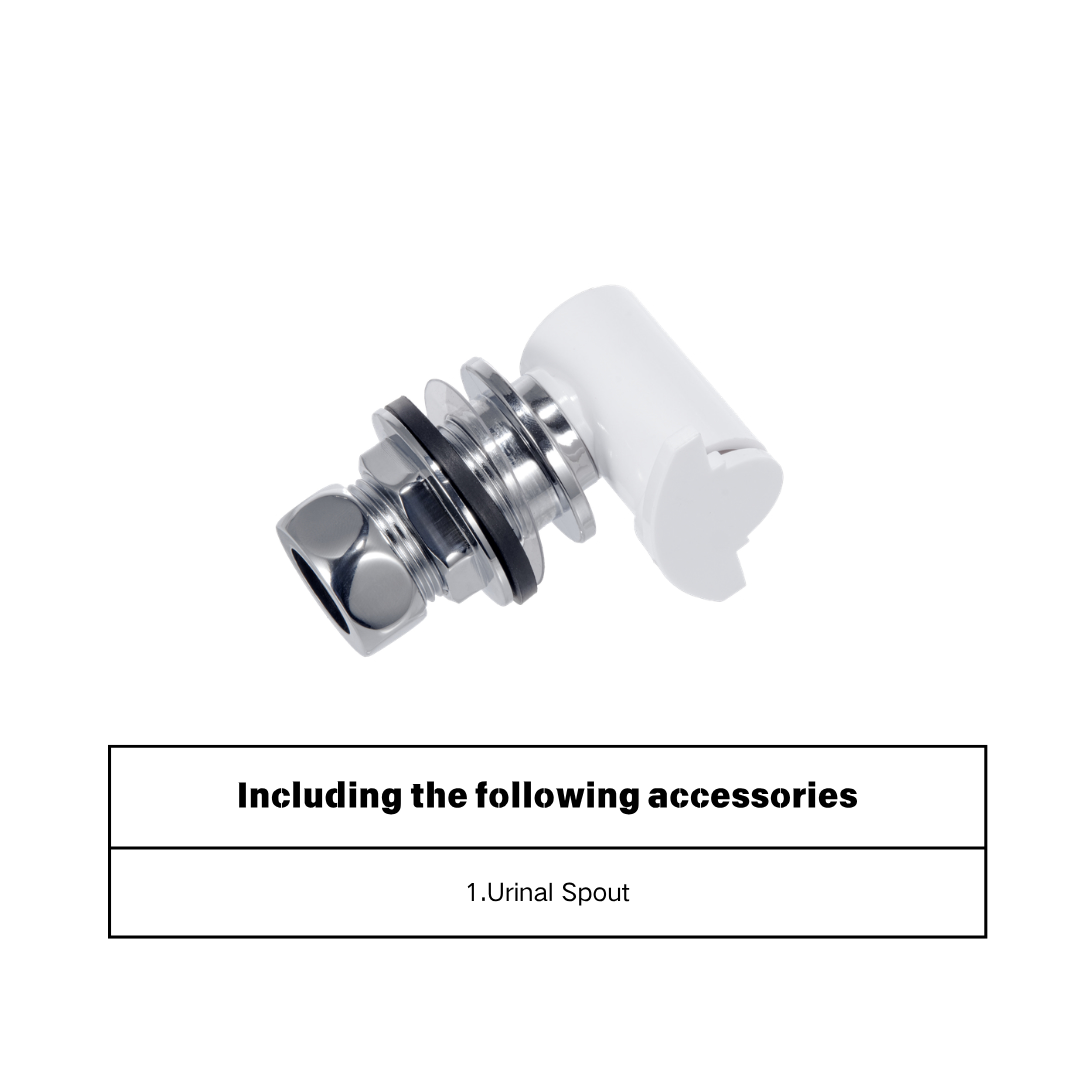

Abun da aka haɗa: 1 man fitsari

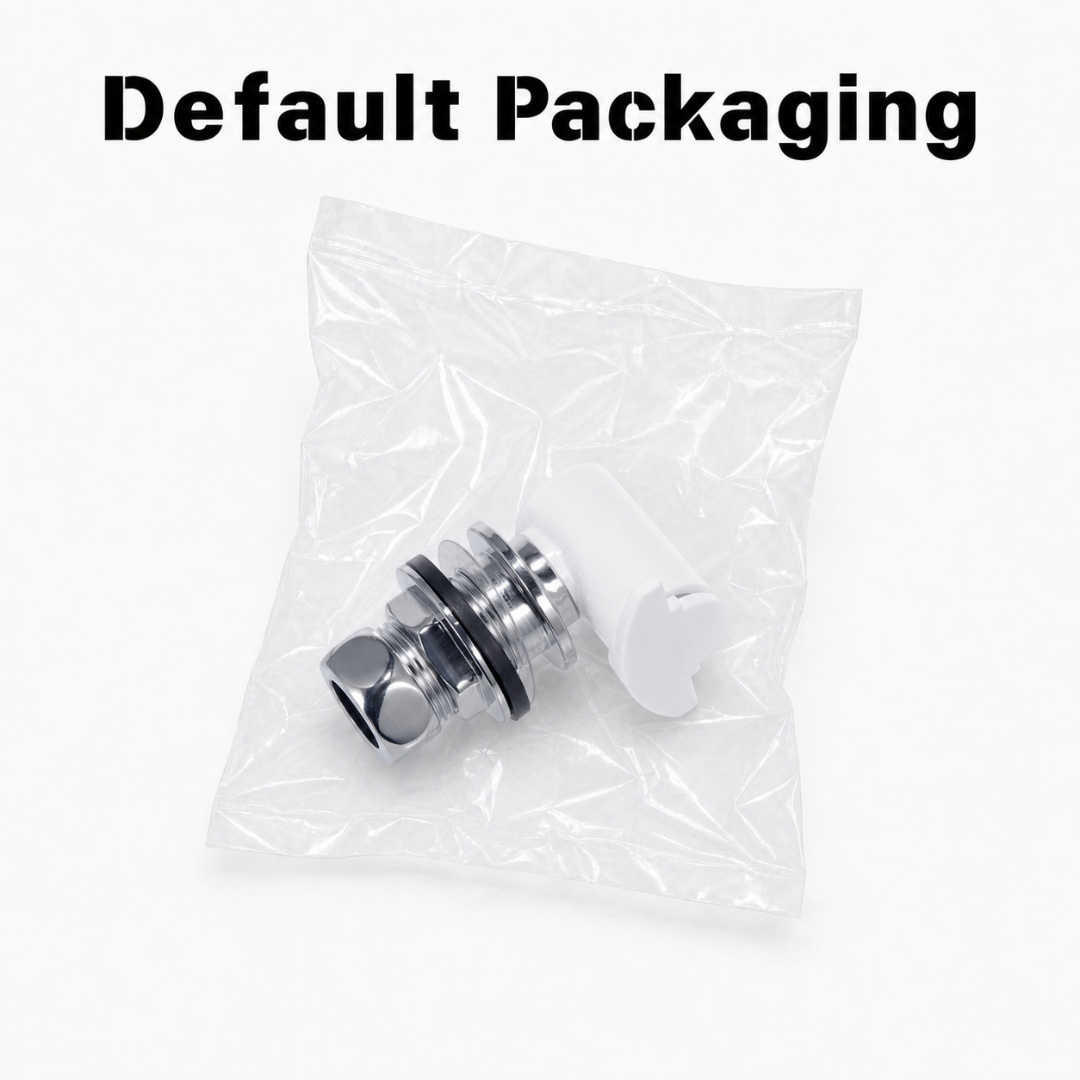

Marufi na na'urar tsoho: Jakar poly mai tsabta ɗaya

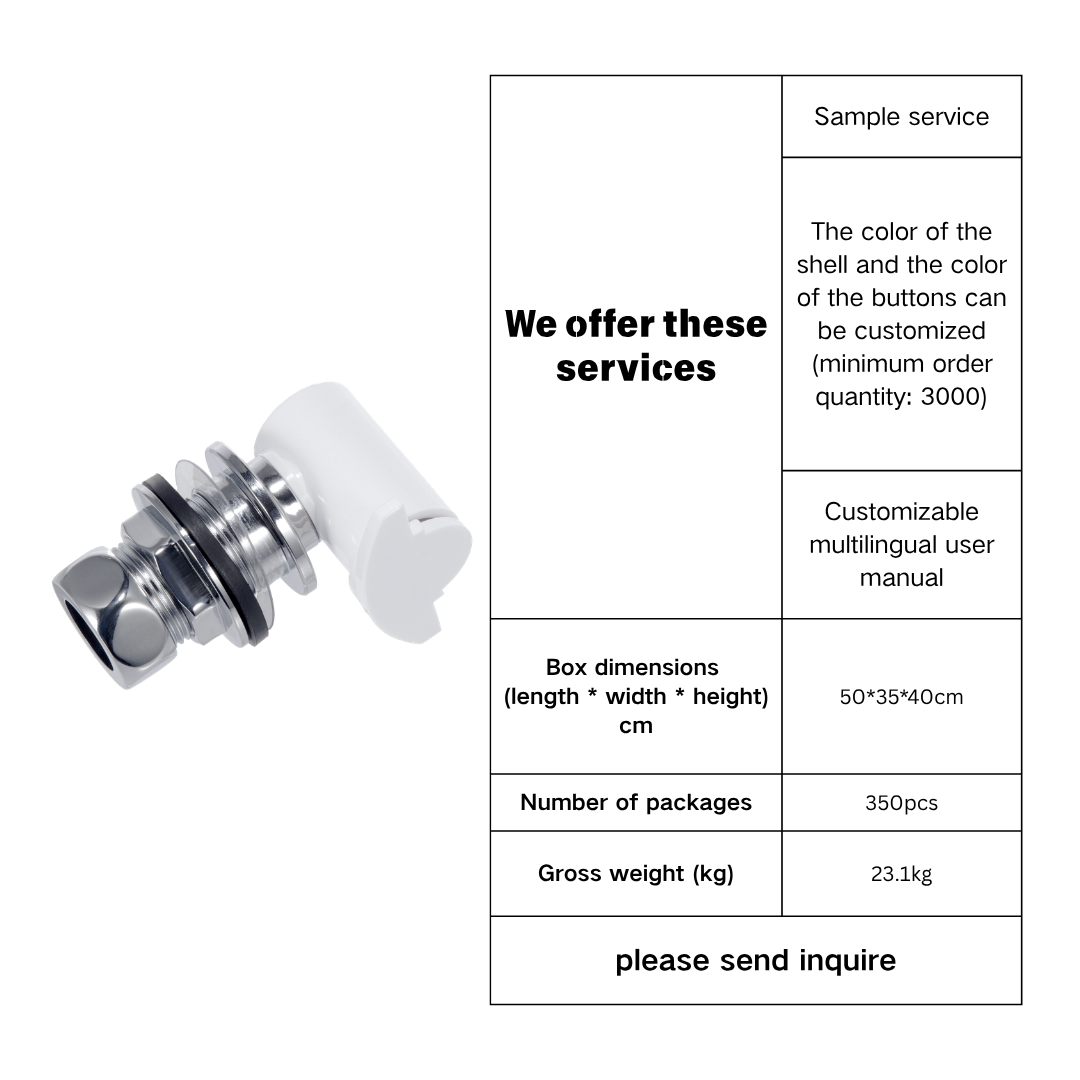

Girman kwali na babban kwali: 50 × 35 × 40 cm
Adadin shiryawa: guda 350
Jimlar nauyin kwali: 23.1 kg
Sabis na samfurin: Akwai
Littafin jagorar mai amfani da harsuna da yawa: Ana iya keɓancewa
Daidaita launi: An jera shi da mafi ƙarancin adadin oda na guda 3,000
Da fatan za a tabbatar da abubuwan da za a iya gyarawa, launukan da ake da su da kuma sharuɗɗan oda na yanzu kafin siyan.
| Lokacin Isarwa: | ≤ guda 2000 / kwana 15 ≤ guda 5000 / kwana 20 > Kwamfutoci 5000 / shawarwari |
| Sabis na Samfura | Ee |
| Ikon Samarwa | Kwamfutoci 200000 / wata |
FA'IDOJIN KAYAN
1. Ingantaccen Aiki a Kasuwanni Da Dama
An samu nasarar sayar da kayanmu a ƙasashe da kasuwanni da dama. Tsawon shekaru, mun ci gaba da yin gyare-gyare da haɓaka shi bisa ga ra'ayoyin kasuwa don magance ƙalubale daban-daban, kamar yanayin zafi mai yawa, matsin lamba mai yawa, da rashin ingancin ruwa. A yau, samfurin ya tsufa sosai kuma yana da ƙarfi. Amfani da kayanmu don faɗaɗa kasuwancinku na iya rage ƙorafe-ƙorafen abokan ciniki yadda ya kamata da kuma inganta gamsuwar abokan ciniki.
2. Cikakkun Ayyukan Keɓancewa
Muna bayar da zaɓuɓɓukan keɓancewa waɗanda suka haɗa da buga LOGO, zaɓin launi, da ƙirar marufi. Misali, za mu iya buga tambarin ku a saman samfurin, mu shafa launuka na musamman a kan murfin iyo da na ado, kuma ƙwararrun masu tsara marufi za su iya ƙirƙirar marufi mai dacewa da kasuwa wanda ke haɓaka kasancewar alamar ku. Mun himmatu wajen taimaka muku kafa tasiri mai ƙarfi a kasuwar ku ta gida.
3. An Tabbatar da Bin Dokoki na Duniya
Wannan samfurin ya riga ya sami takaddun shaida na CE, CUPC, da ICC-ES. Idan kasuwar da kake son siyan ta buƙaci ƙarin takaddun shaida, za mu iya taimaka maka wajen samun amincewar da ake buƙata don tabbatar da shiga kasuwa cikin sauƙi.
Tambayoyin da ake yawan yi akai-akai
Ta yaya zan iya duba ko U7002 ya dace da fitsarina?
Tabbatar da zaren NPSM mai girman 15/16-16, girman ramukan hawa sama, saman rufewar yumbu, matsayin bututun waje da sararin da ake da shi a cikin kwano. Haka kuma kwatanta tsayin samfurin na 71.2 mm gabaɗaya, tsawon gwiwar hannu na 44.5 mm da faɗin jagorar ruwa na 50 mm. Kamanceceniya ta gani kaɗai ba ta tabbatar da dacewa ba.
Ta yaya U7002 ke haɗawa da kuma jagorantar ruwan sharar gida?
Fitar ta shiga ta cikin babban mashigar fitsari. Tsarin mannewa da gasket ɗin da aka zare yana ɗaure haɗin, ƙarshen da aka fallasa yana haɗuwa da bututun samar da ruwa na waje, kuma gwiwar hannu ta ciki ta 90° tana tura ruwa ta cikin jagorar ruwa ta farin cikin kwano.
Waɗanne ayyukan marufi da gyare-gyare ne ake samu?
An nuna kowace U7002 a cikin jakar poly mai tsabta guda ɗaya. Akwatin da aka jera yana da girman 50 × 35 × 40 cm kuma yana ɗauke da guda 350 a jimlar nauyin 23.1 kg. An jera samfurin sabis da gyare-gyaren hannu da harsuna da yawa, yayin da keɓance launi yana ɗauke da MOQ da aka bayyana na guda 3,000. Tabbatar da sharuɗɗan yanzu da abubuwan da suka dace lokacin neman ƙiyasin farashi.
