Close Coupled Toilet Tank Repair Kit with Side Push Button Adjustable Fill Valve and 2 Inch Single Flush Valve

Close Coupled Toilet Tank Repair Kit with Side Push Button Adjustable Fill Valve and 2 Inch Single Flush Valve

This toilet tank repair kit is designed for two-piece toilets with a side push button and a 2 inch outlet. The complete set includes an adjustable piston fill valve, a 2 inch single flush valve, a side push button, connecting bolts, a rubber gasket, and other essential installation accessories.

The fill valve features a clip-lock height adjustment design, which makes adjustment easier and more reliable than traditional pin-type structures. Compared with the old pin design, the clip structure helps prevent small parts from slipping out and falling into the cistern during installation or maintenance, making operation more convenient for users.



This kit is specially matched for close-coupled ceramic toilet tanks. The flush system uses a side push button to activate the single flush valve, which is different from conventional top-push flushing structures. It is a practical repair and replacement solution for the toilet replacement market, and is also suitable for wholesalers, distributors, and maintenance supply businesses.

  • Abu Na'a :

    T1103B+T0102FG2+T2102CP+T3101-80+3T4225-03B
  • Kanfigareshan Gidan Wuta :

    Two-piece
  • Takaddun shaida :

    CE, UPC, CUPC
  • Garanti :

    3-5 Years
  • Oda (MOQ) :

    1000 set
  • Tashar Jirgin Ruwa :

    Xiamen
  • Sabis na Musamman :

    LOGO,Package,Color

    PRODUCT DESCRIPTION



Product Name: Close Coupled Toilet Tank Repair Kit with Side Push Button Adjustable Fill Valve and 2 Inch Single Flush Valve

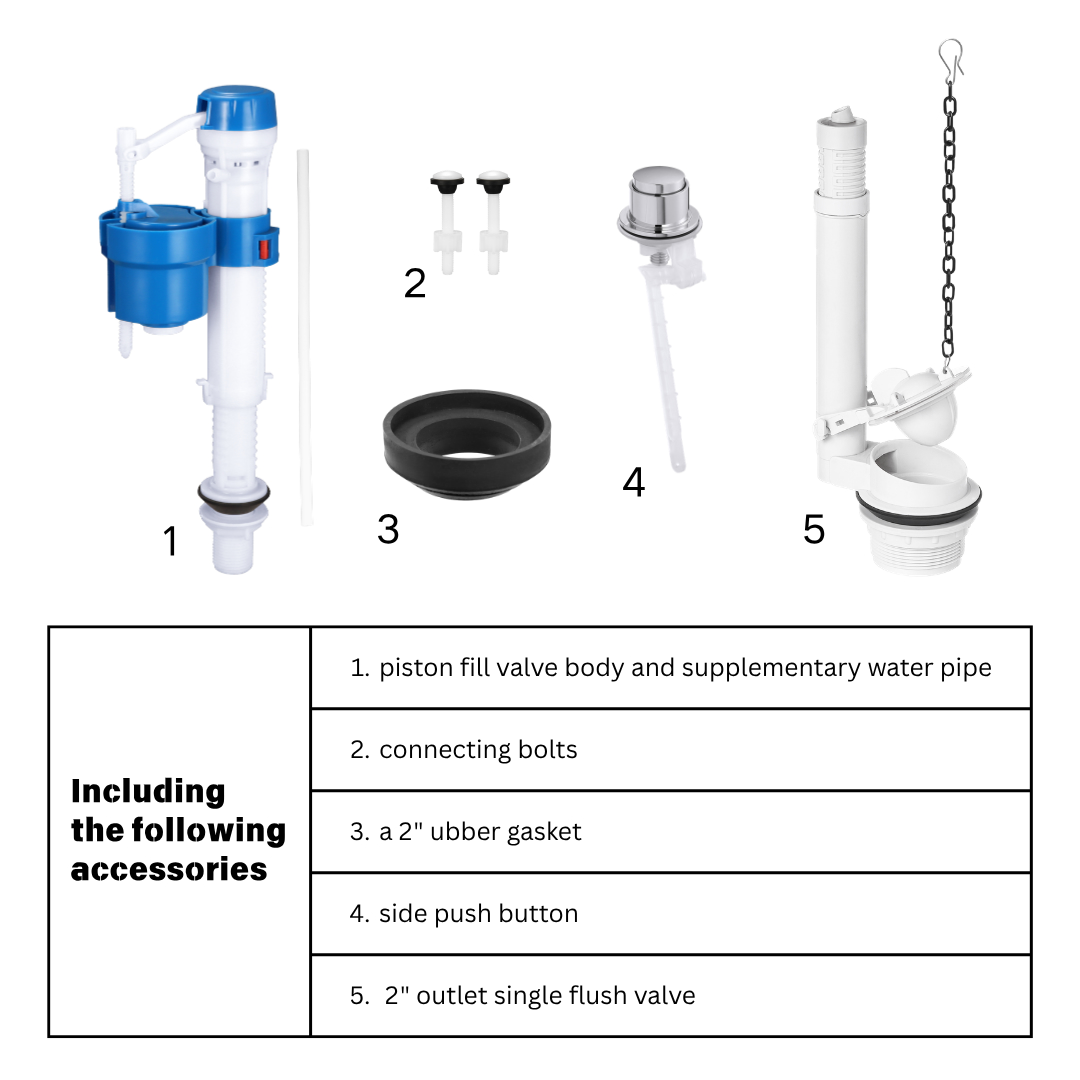

This close coupled toilet tank repair kit is designed for two piece ceramic toilets with a side mounted push button. It combines an adjustable fill valve, a 2 inch single flush valve, a side push button, tank bolts, rubber gasket, and installation accessories into one complete repair solution. For distributors, wholesalers, and maintenance suppliers serving the South American replacement market, this kit provides a practical option for toilet tank repair and spare parts replacement.

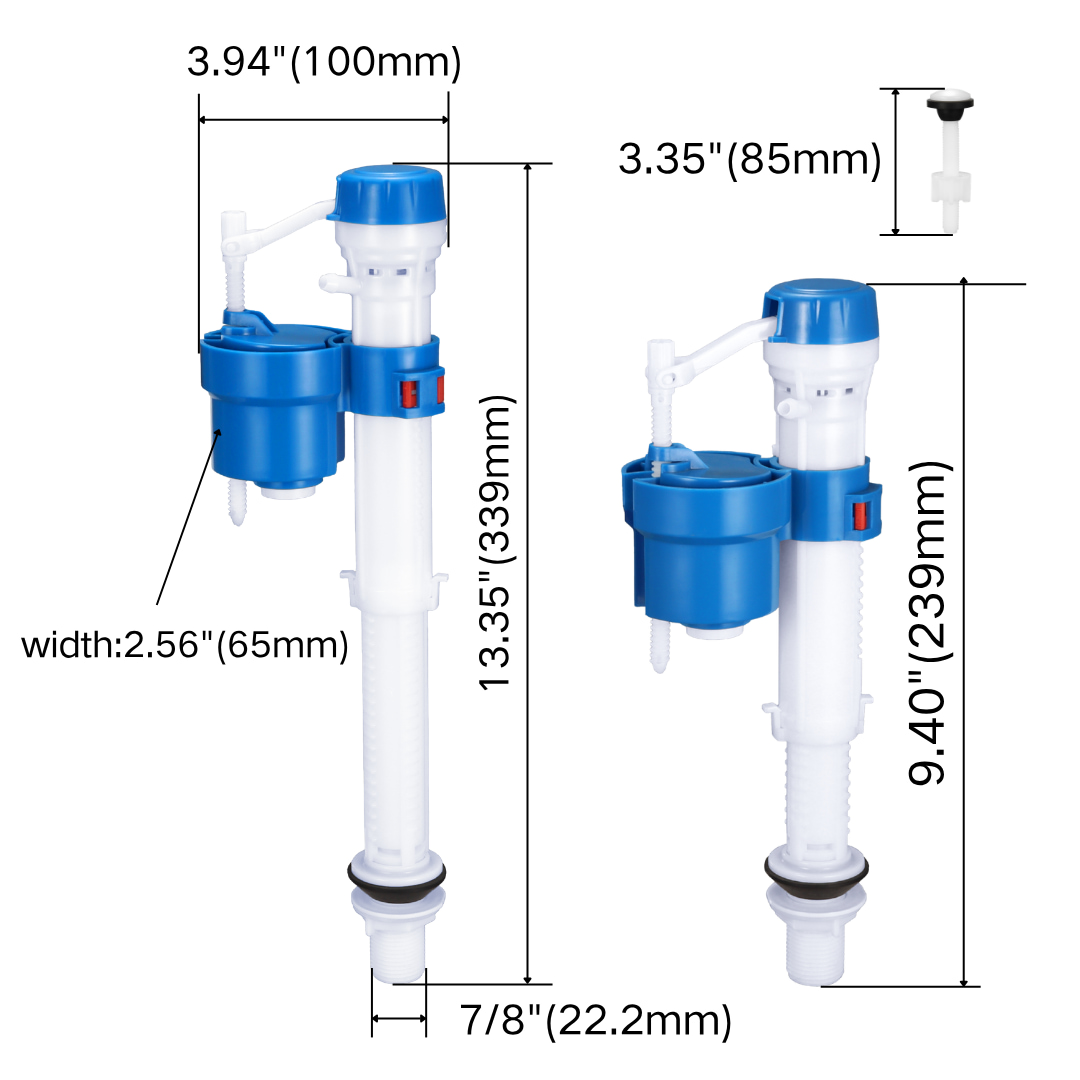

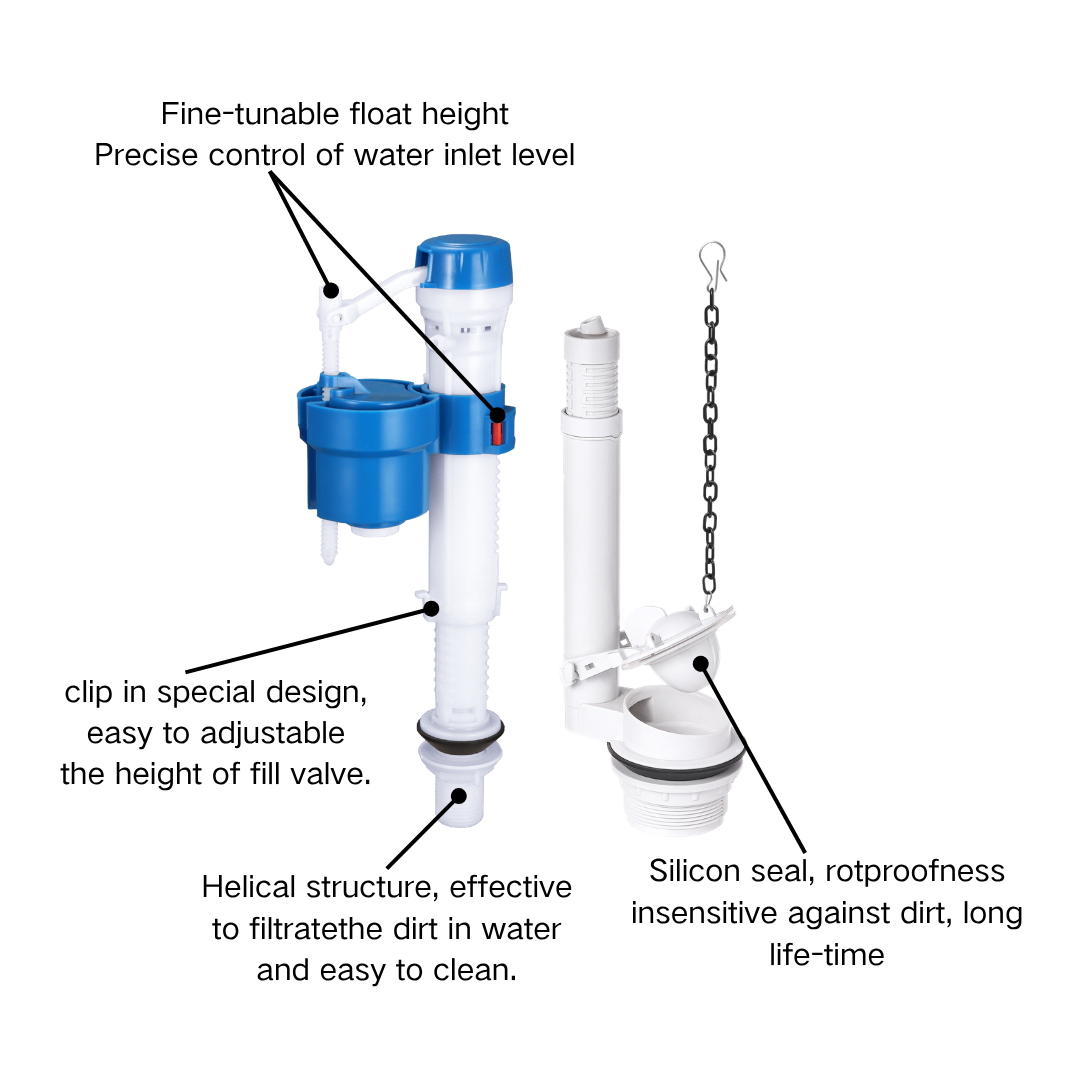

The fill valve adopts an adjustable height design, making it suitable for different ceramic tank structures. One of its key advantages is the clip lock adjustment system. Compared with traditional pin type height adjustment, the clip structure is easier to operate and helps prevent small parts from falling into the cistern during installation or maintenance. This design improves user convenience and reduces the risk of losing small components inside the toilet tank.

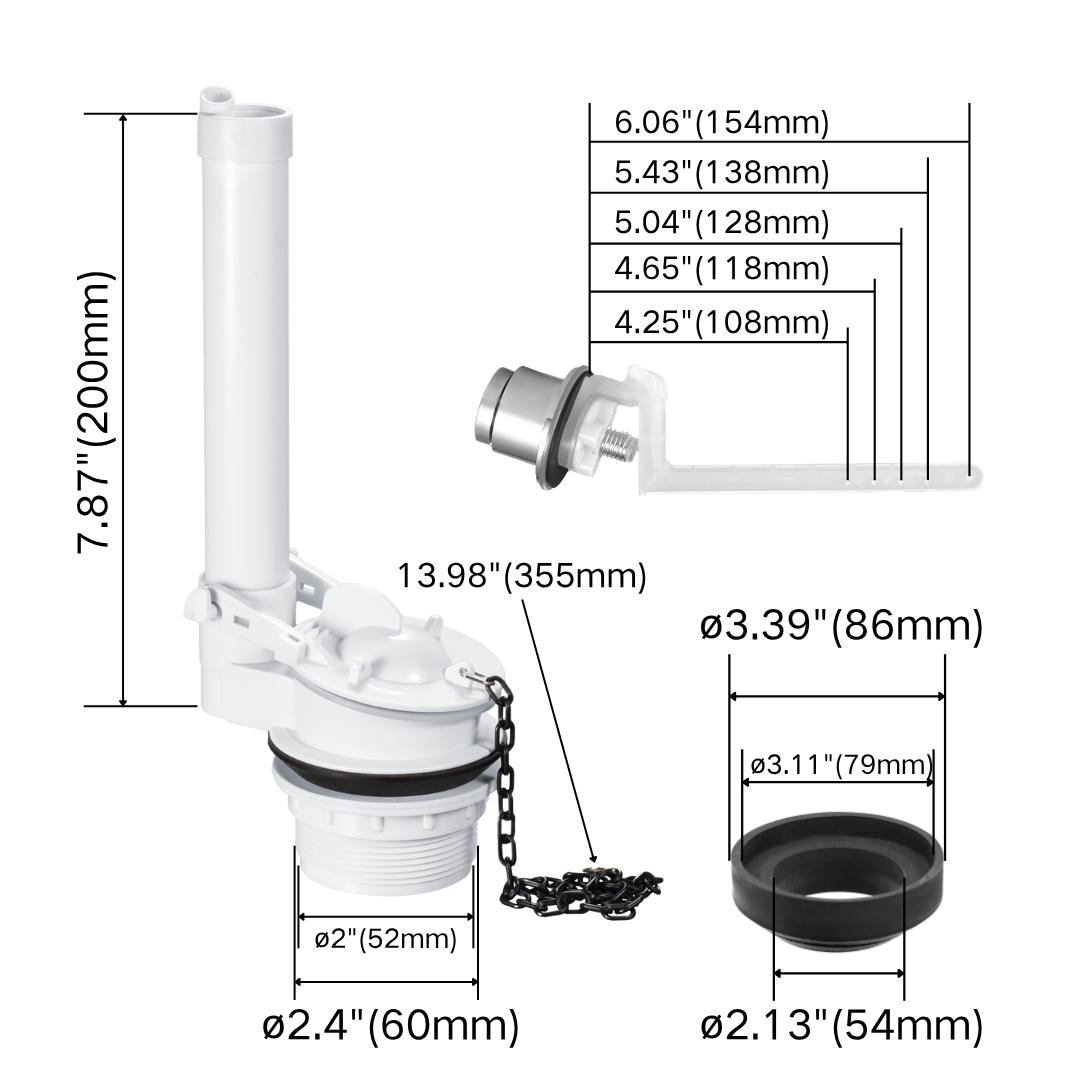

The flush valve is a 2 inch single flush valve for close coupled toilet tanks. Instead of using a top push button, this kit is designed for side push button flushing. The button activates the flush valve through a lever rod mechanism, similar to the working principle of a side flush handle. This makes the kit especially suitable for side button single flush toilet tanks, where a simple and reliable flushing action is required.

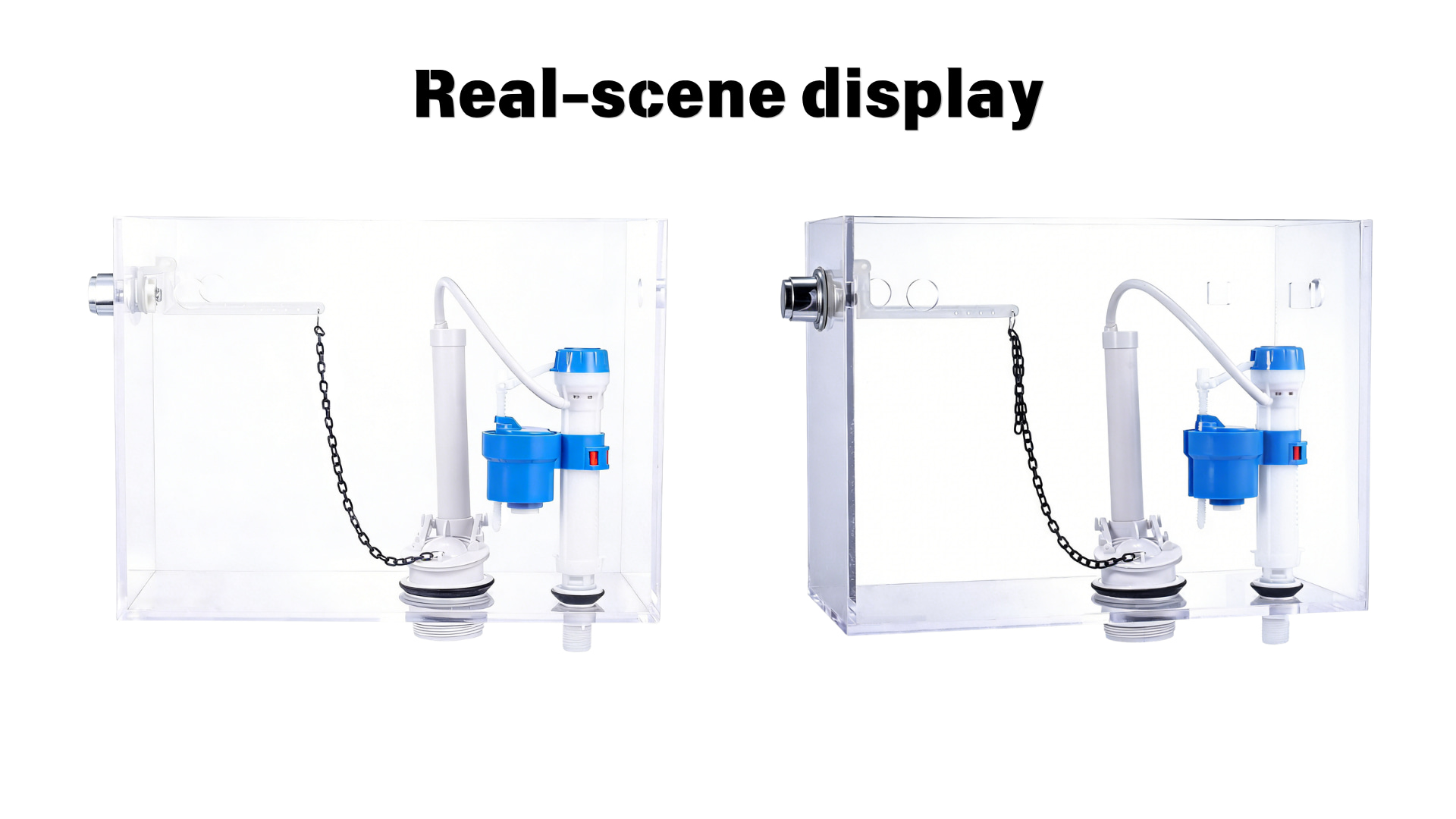

For the product detail page, the real installation image can clearly show how the side push button toilet repair kit works inside a ceramic tank. It helps buyers understand the actual application scenario and confirms that the kit is made for close coupled and two piece toilet systems.

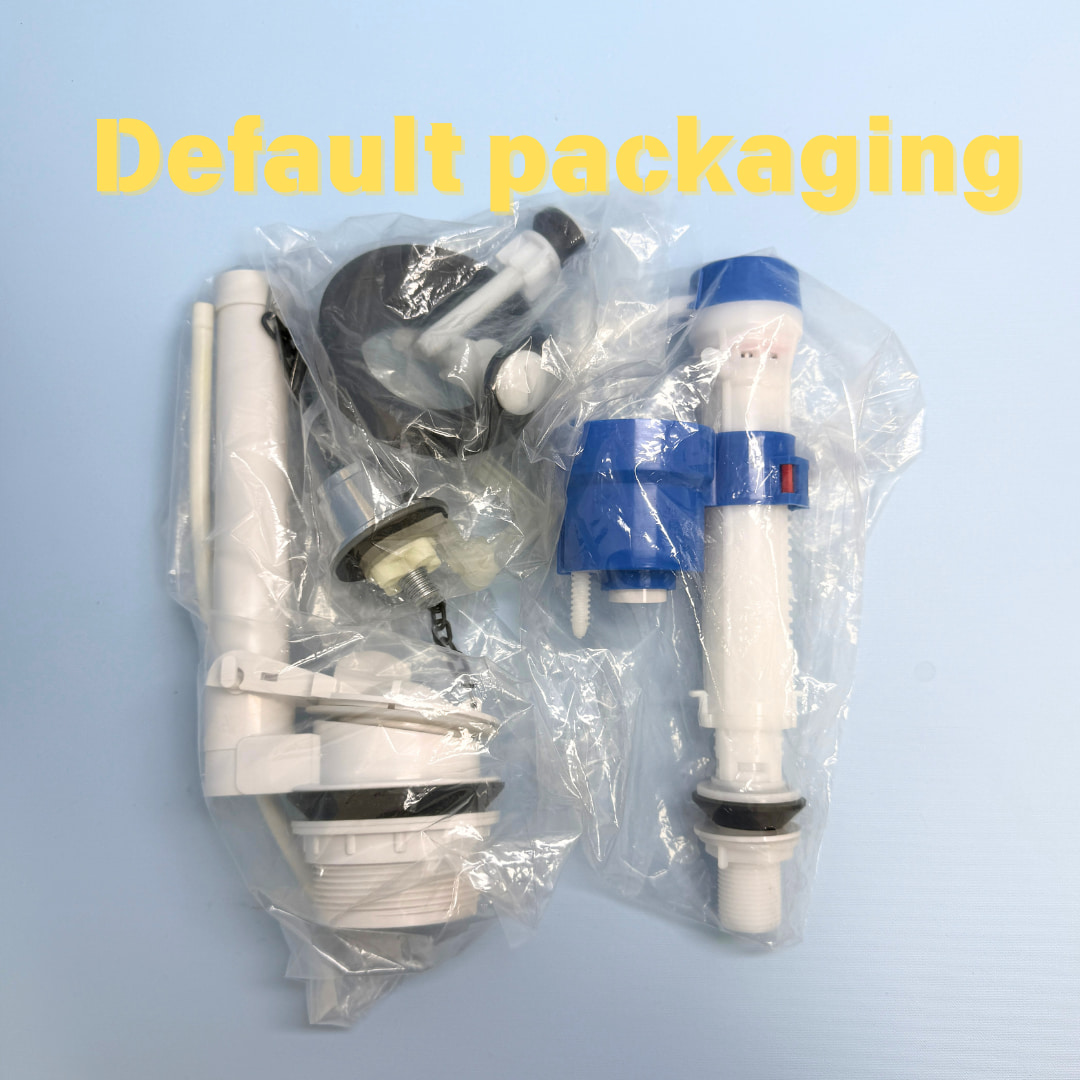

The packaging image can also be used to show the default packing method, making it easier for B2B customers to evaluate the product for wholesale, retail, or replacement parts distribution.

This side button toilet tank replacement kit is suitable for toilet repair projects, hardware stores, bathroom maintenance channels, and sanitary ware spare parts suppliers. With a complete component combination and user friendly structure, it can help customers reduce matching problems when sourcing separate fill valves, flush valves, buttons, and installation accessories.

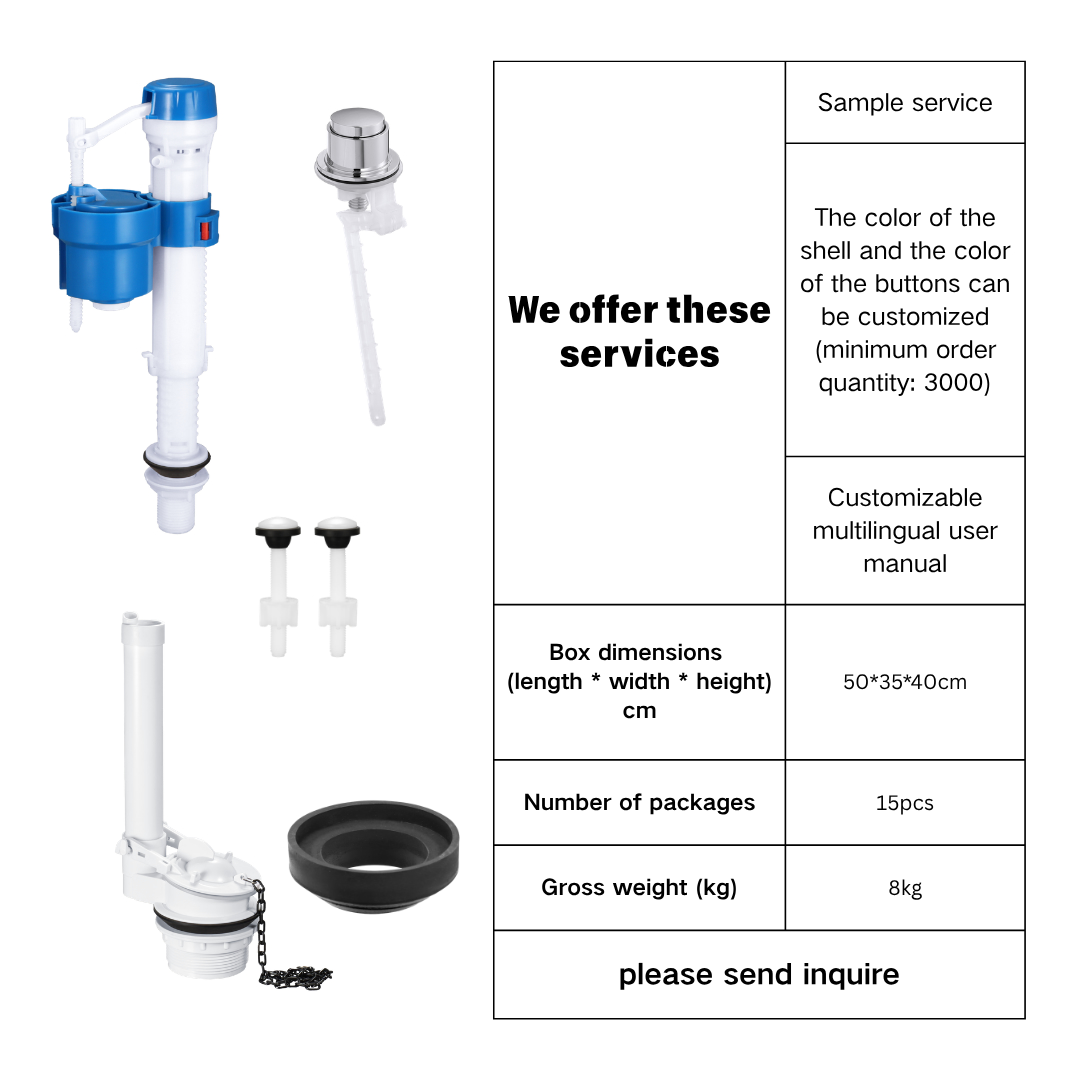

For wholesale customers, e commerce sellers, and private label brands, we can also provide sample service, color customization, button color customization, multilingual instruction manuals, label packaging, color box packaging, and other OEM ODM packaging solutions.

Material: ABS, POM
Control: Side push button
Delivery Time:

≤ 1000 pcs / 15 days

≤ 5000 pcs / 20 days

> 5000 pcs / negotiate

Sample Service Yes
Supply Ability 60000 pcs / month



    PRODUCT ADVANTAGES



1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.



2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.



3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.



    FAQ



What type of toilet is this repair kit suitable for?

This repair kit is suitable for close coupled and two piece toilets with a side mounted push button. It is designed for ceramic toilet tanks with a 2 inch outlet and is a practical replacement solution for side button single flush toilet systems.



How does the side push button activate the flush valve?

The side push button activates the single flush valve through a lever rod mechanism. Its working principle is similar to a side flush handle, but the operation is completed by pressing a button instead of turning or pulling a handle. This makes the flushing action simple and suitable for side button toilet tanks.



What is the advantage of the clip lock adjustable fill valve?

The clip lock adjustable fill valve is easier to adjust than traditional pin type structures. During installation or maintenance, the clip design helps prevent small parts from falling into the toilet tank, making height adjustment more convenient and user friendly.



    WHY CHOOSE US?



1.Market Experience

Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.



2.Quality Guarantee

We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.



3.R&D Ability

We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.



4.Customer Support

We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
